3 Axle fuel tanker trailer

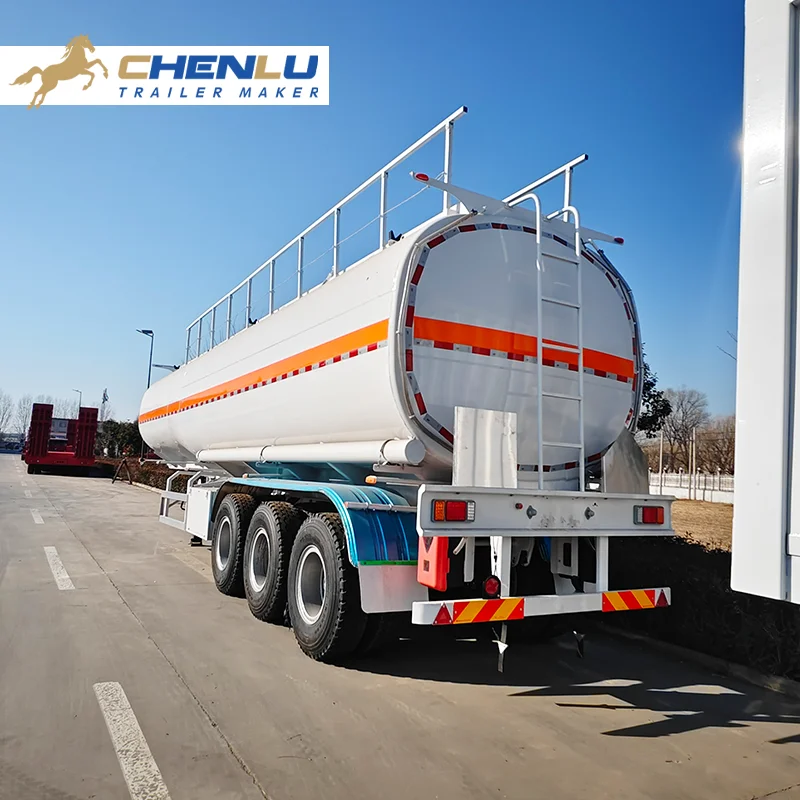

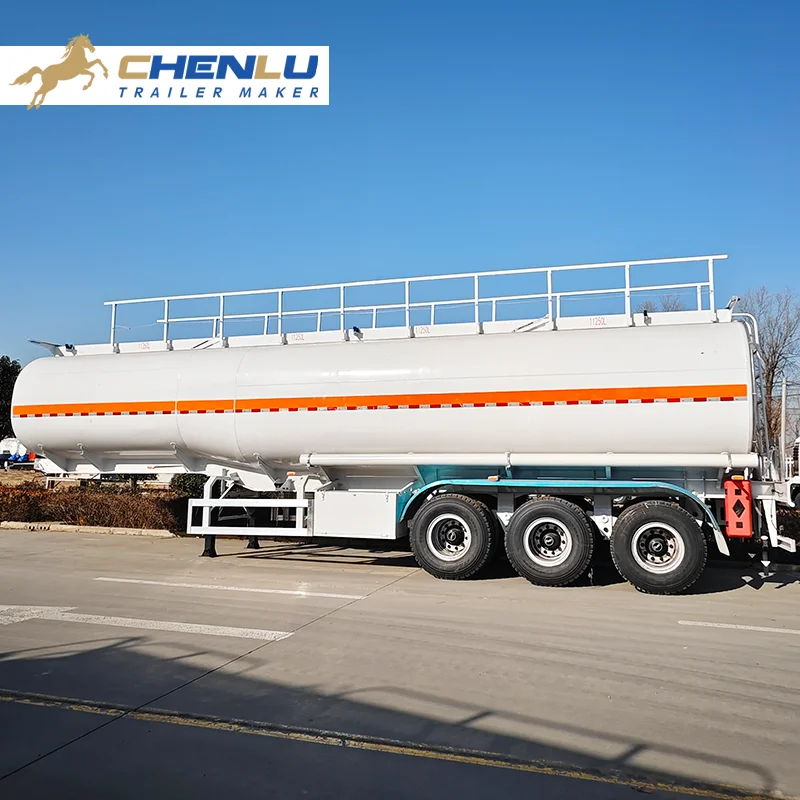

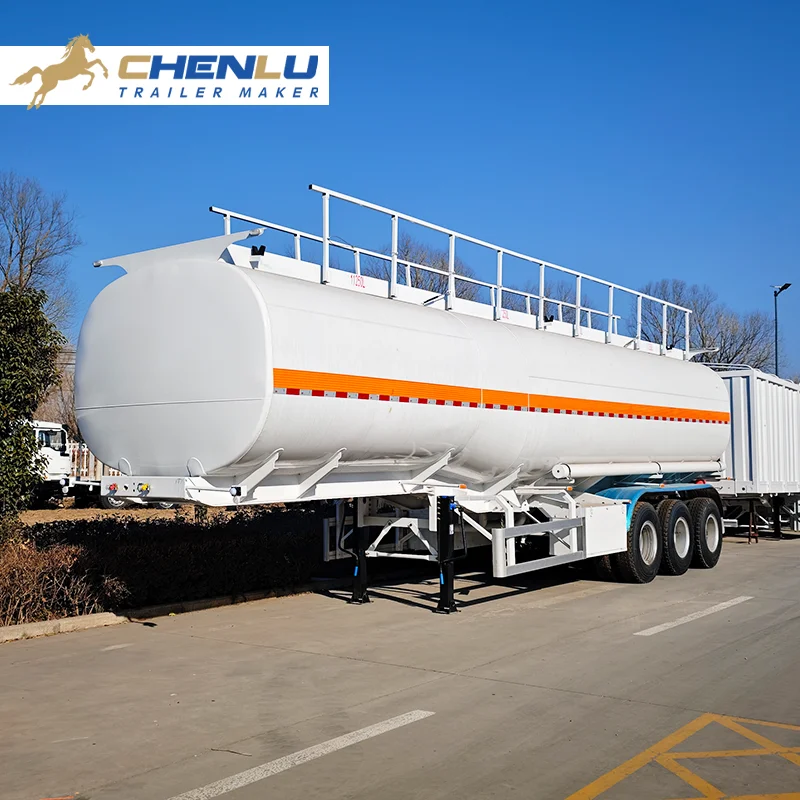

Fuel tanker trailer features a 3 axle structure, providing strong load bearing capacity. It is primarily used for long distance transportation of liquid media such as gasoline and diesel. The large tank volume and multi compartment design allow for the separate transport of different media. Safety railings and manholes are located on the top, ensuring safe and reliable operation.

Price:13000 USD Supply capacity: 500pcs/Month Warranty: 2 Years
3 axle fuel tanker
45000 liters fuel tanker
Petrol tanker trailer
Fuel tanker trailer
Oil tanker semi trailer
Get a Quote Talk to Our Engineer

Product Description

High Strength Fuel Tanker Trailer

The petrol tanker trailer is made of high strength steel, with a large tank volume and multi compartment design, capable of transporting multiple liquid media simultaneously, resulting in high transportation efficiency. Its stable chassis structure and low center of gravity ensure smooth and reliable operation, making it suitable for liquid transportation needs under various complex working conditions.

  • Multi-purpose Trailer

  • Efficient transportation

  • Strong stability

TRAILER PARAMETERS
Overall Length 10200mm-12000mm
Overall Wide 2500mm
Overall Height 3800mm-3990mm
Tare Weight About7500KGS-15000KGS
Total Volume 40000L-50000L
Tanker Body:
Compartment Single/2/3/4/5/6/7 compartments optional TEST Hydrostatic test to 5 psi (35 Kpa) on each compartment
Tanker Body 5mm or 6mm/Q235carbon steel Discharge valve: 3″ ball valve with dust cover,Euro Standard Valve
End plate 5mm or 6mm/Q235carbon steel Bottom valve: 4-inch 2 pcs with Pneumatic controller
Manhole Cover Safety manhole with breath valve, 2pcs, diameter 500mm. Welding standard: All welding are to be done by qualified welder per applicable national standard
Discharging Pipe 3 or 4 inch rubber hose,1pcs,6m/each TOP TANK Walk With(Common or special design)
Chassis
Axles 2 or 3 axles, 13T/16T,BPW/FUWA/CHENLU brand
Main Beam Q345carbon steel ,Welding Design
Support Legs JOST(D200T) or China brand 28T
Suspension Mechanical suspension/Germany or America type/Air Suspension
Leaf Spring 90(W)mm*13(Thickness)*10 Layer or other
Braking System WABCO RE6 relay valve; T30/30+T30 Spring brake chamber,45L air chamber
Tire 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optiona
Rim 9.00-22.5/8.00-20/8.5-20 China Brand
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
ABS Optional
Painting Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
Accessories One tool box
Shipping Terms By Bulk Cargo,RORO or 40HQ or 40ft FR container



How to Choose the Right Trailer Type for Your Operation

When selecting a container & bulk transport trailer, consider the following

Various parts such as braka companonts, bearings and tires are sciactad tom brands that ars widely ovallable in g obal maricts. CHENU pravaes pperaton guides, maintenanoe advioe and spare parts sclutions to support the long term use of your container and bulk cargo tra ilers.

What customized services can we offer you?

Oplimized Frame Design for Heavy Loads

CHENLU flatbed, lowbed, dump and sidewall semi trailers use high strength structural steel and optimized frame geometry. Critical stress areas are reinforced to handle frequent loading cycles and challenging road conditions.This helps extend trailer service life and reduce unexpected downtime.
