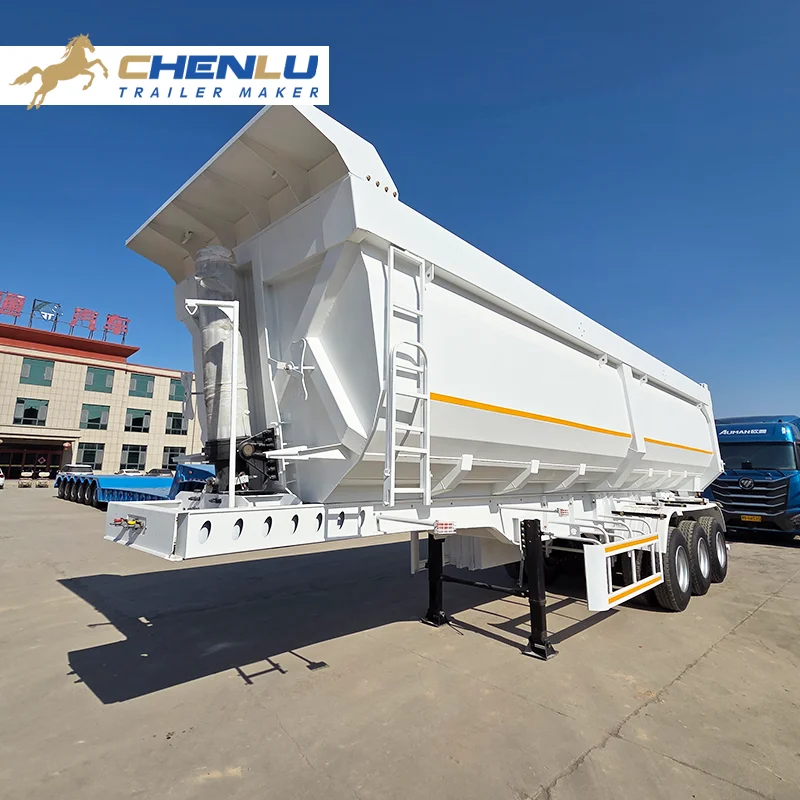

3 axle dump trailer
tipper semi trailer

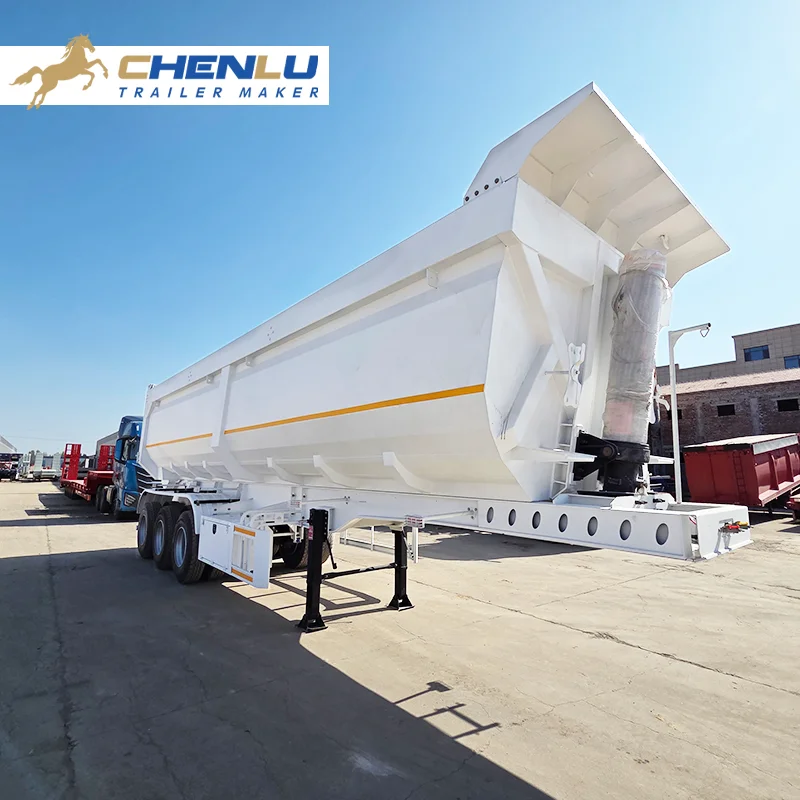

heavy duty dump trailer

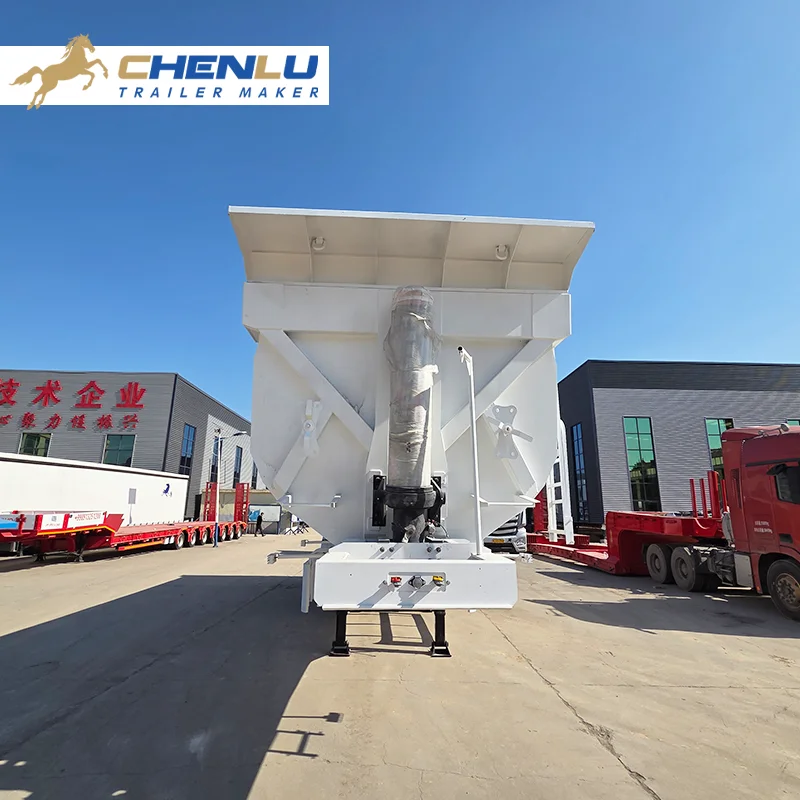

end dump trailer

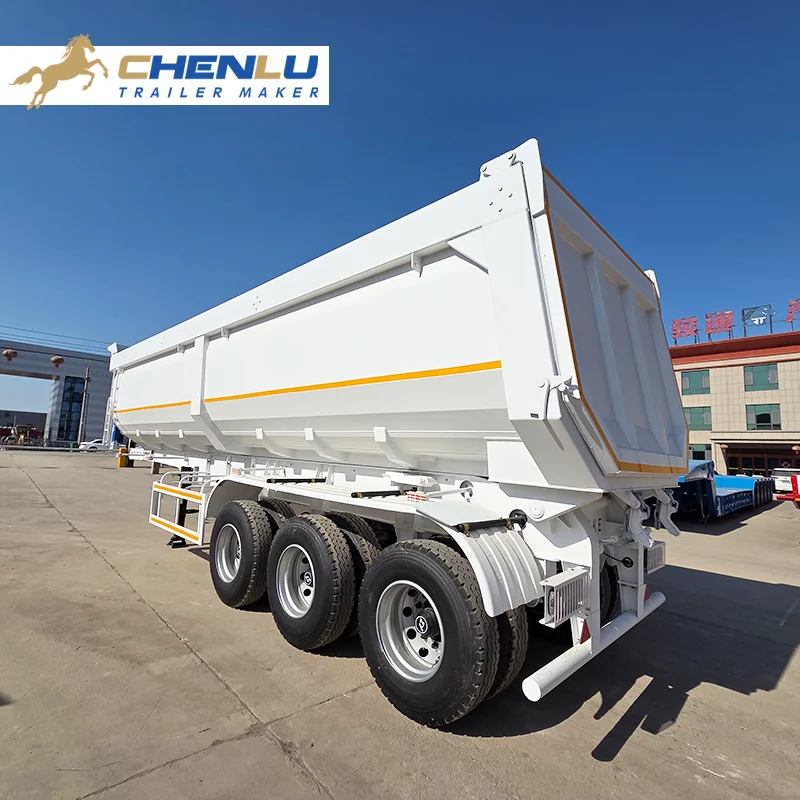

dump semi trailer

3 Axle Dump semi trailer

3 axle dump trailer features thickened sidewalls and a floor, ensuring superior load bearing capacity and wear resistance. Equipped with hydraulic cylinders and optional leaf springs or air suspension, it provides reliable lifting performance and ensures durability.

Price:13500 USD Supply capacity: 500pcs/Month Warranty: 2 Years
3 axle dump trailer
tipper semi trailer
heavy duty dump trailer
end dump trailer
dump semi trailer
Get a Quote Talk to Our Engineer

Product Description

High Strength Dump Semi Trailer

Dump semi trailers are specifically designed for transporting stones and construction waste. dump trailer feature a high strength steel reinforced structure and a robust, durable cargo box, capable of withstanding harsh operating environments. The sturdy chassis, wear resistant cargo box, and anti corrosion coating ensure long term durability.

  • Multi-purpose Trailer

  • Efficient transportation

  • Strong stability

Items
3 Alxe Dump semi trailer
4 Axle Dump semi trailer
Loading Capacity
40-50 tons
50-70 tons
Axle
3 pieces, 13T FUWA/BPW axle
4 pieces, 13T FUWA/BPW axle
Tyre
12 pieces, 12.00R20
16 pieces, 12.00R20
Dimensions(LxWxH)
9750 to 12000mm x 2500 x 3200mm
Tare weight
10 tons to 12 tons
Axle spacing
1310mm
Rims
8.5-20, 9.0-20
Suspension System
Leaf spring suspension / air suspension
Brake System
Dual line pneumatic brake system with WABCO emergency relay valve
Main Beam
Height 500mm Q345
Chassis
upper 14mm, lower 16mm. Mid web 12mm
Dump Box Thickness
Bottom 8mm Side 6mm
Hydraulic Cylinder
HYVA
Kingpin
2’ or 3.5’ interchangeable
Landing Gear
28 Tons , Two speed manual operation
Electrical System
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard
Lights and Reflectors
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Painting
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available
Tool Box
One tool box with a set of standard trailer tools
Spare Tyre Carrier
One piece or two pieces

How to Choose the Right Trailer Type for Your Operation

When selecting a container & bulk transport trailer, consider the following

Various parts such as braka companonts, bearings and tires are sciactad tom brands that ars widely ovallable in g obal maricts. CHENU pravaes pperaton guides, maintenanoe advioe and spare parts sclutions to support the long term use of your container and bulk cargo tra ilers.

What customized services can we offer you?

Oplimized Frame Design for Heavy Loads

CHENLU flatbed, lowbed, dump and sidewall semi trailers use high strength structural steel and optimized frame geometry. Critical stress areas are reinforced to handle frequent loading cycles and challenging road conditions.This helps extend trailer service life and reduce unexpected downtime.
